Mig-21M
Jugoslovansko vojno letalstvo, št. 805 - Yugoslav Air Force
Jugoslovansko vojno letalstvo, št. 805 - Yugoslav Air Force
Eduard 1:48
3. PROSTORI ZA KOLESA (WHEELS ROOM)
Uporabljeni dodatki (Used Accessories):
Eduard Mig-21 MF exterior item No 48702
Eduard Mig-21 MF exterior item No 48702

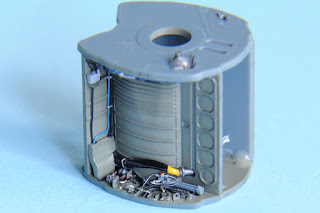

3.1. Prostor za kolesa - spredaj (Wheels Room - Front):
Od delov iz škatle uporabimo dele št. C40, C30, C19 in sprednjo polovico dela C1.
Used parts from the box are (No C40,C30, C19 and a front half od the C1 part).
Used parts from the box are (No C40,C30, C19 and a front half od the C1 part).
Stranske stene prostora, namesto delov C49 in C52, izdelamo v samogradnji iz 0,5 mm debele plastike.
Instead of parts C49 and C52, it's reccomended to make your own parts out of the 0,5mm plastic.
Ojačitve na stranskih stenah kolesnega prostora so izdelane iz tanke aluminijaste pločevine.
Reinforcements on the side walls of the wheels room are made of thin aluminium sheets.
Od jedkanih delov iz kompleta Mig-21 MF exterior so bili uporabljeni naslednji deli:
Used accessories from the PE-parts set(Mig 21 MF exterior) are:
deli št. 32 in 87 (Parts No 32 and 87)
in deli št. 66 in 88 (Parts No 66 and 88)
Vsi ostali detajli so izdelani v samogradnji pri čemer so bile uporabljene injekcijske igle različnih debelin (cilindri), svinčena žica 0,2 in 0,3 mm (hidravlični vodi), bakrena žica 0,1 mm za izdelavo vzmeti ter različna plastika za izdelavo drugih detajlov. Notranjost kolesnega prostora je pobarvana z barvo Revell št.45. Ustrezna je sicer vsaka barva z oznako RLM02.
All other details were scratchbuilt out of the injection needles(different sizes, lead wire( 0,2mm & 0,3mm hydraulic circuit), copper wire( 0,1mm), for springs and plastic for other parts. Interior of the wheels room was painted with Revell 45. You can use any other paint with the mark RLM02.
3.2. Prostor za kolesa - zadaj (Wheels Room - Back)

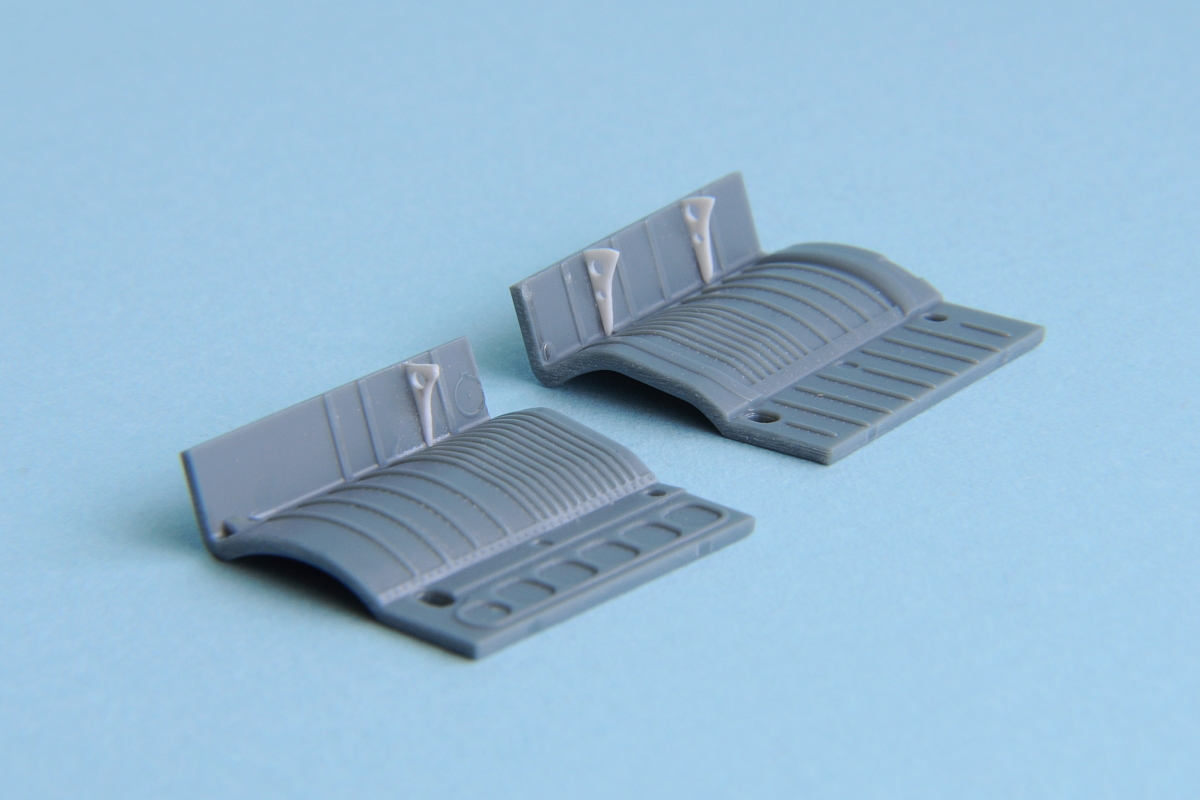

Od delov iz škatle uporabimo vse dele ohišja (C2, C47, C14, C15) in tudi nekatere manjše dele kot so C22, D48, D50 in D53.
From the box we use all body parts(C2, C47, C14, C15) and some of the smaller parts (C22,D48, D50, D53).
Od Eduardovih dodatkov uporabimo le del št. 61 brez hidravličnih vodov (te porežemo ker so ploščati) ter dva dela št. 33.
From Eduard's accessories we only use part 61 without hydraulc circuit(and cut them because they're flat) and two parts No 33.
Najprej na vseh štirih delih ohišja navrtamo ustrezne odprtine, odtisnemo kovice, na zgornji strani delov C14 in C15 pa izdelamo še pregrade iz tanke plastike, na levi strani eno in na desni strani dve.
First we need to drill the holes on all 4 parts of the body and make rivets. On the top of the parts (C14 & C15) we must make a barrier out of the thin plastic. One on the left side and two on the right side.
Natisnjene instalacije na delih C15 in C16 pobrusimo in izdelamo v samogradnji. Nekatere detajle lahko izdelamo kar iz pločevine jedkanih delov.
We must grind the existing printed instalations on parts C15 and C16 and make our own. Some of the details can be made of PE parts sheet.
Za izdelavo vodov uporabimo bakreno žico 0,1 mm in svinčeno žico 0,2 ter 0,3 mm. Cilindri, konektorji in ventili so izdelani iz injekcijskih igel od 0,4 mm dalje. Cevi C24, C33 in C44 so izdelane iz bakrene žice 1,2 mm.
To make circuits we use wire 0,1mm and a lead wire 0,2 and 0,3mm. Cilinders, connectors and vents are all made of injection needles starting from 0,4mm. Pipes C24, C33 and C44 are made of copper wire 1,2mm.

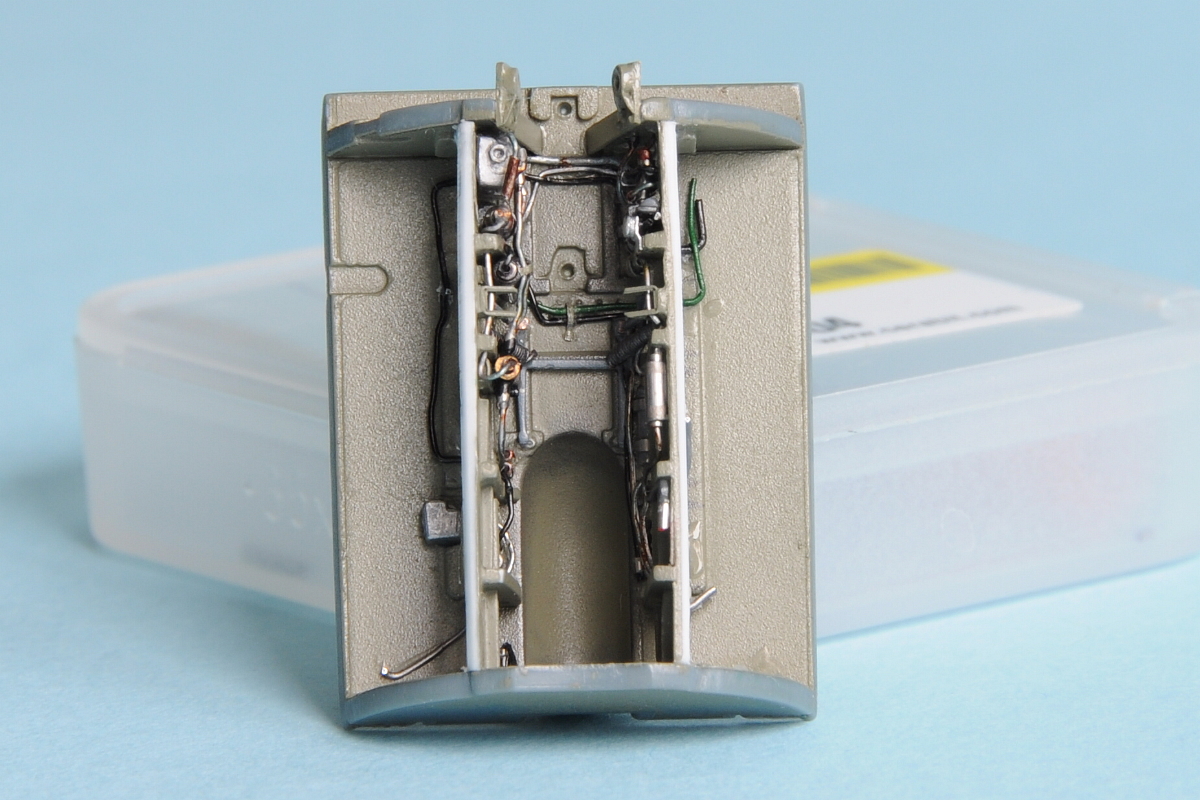

Leva stran (Left side):

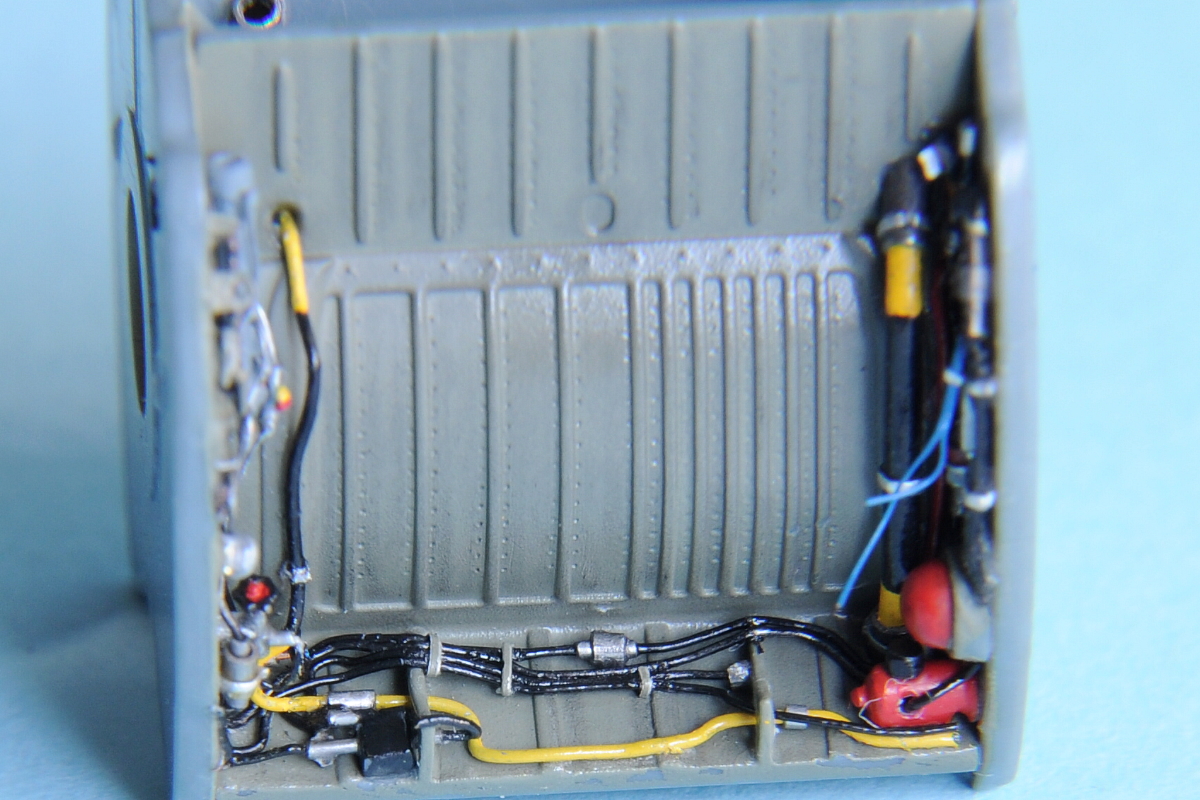

Desna stran (Right side):
Kompletna delavnica (Detailed Workshop here):
